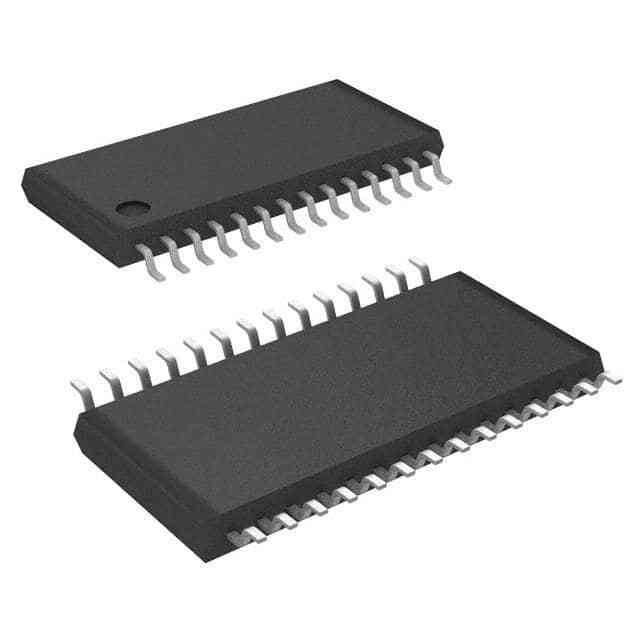

S9S08SL8F1MTL

SKU: 45146

Manufacturer: NXP Semiconductors

MCU 8-bit S08 CISC 8KB Flash 3.3V/5V Automotive 28-Pin TSSOP Tube

3650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S08
Instruction Set Architecture	CISC
Device Core	S08
Core Architecture	S08
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	512B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SCI/SPI
Number of I/Os	22
No. of Timers	2
PWM	4
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.8(Max)
Package Width	4.5(Max)
PCB changed	28
