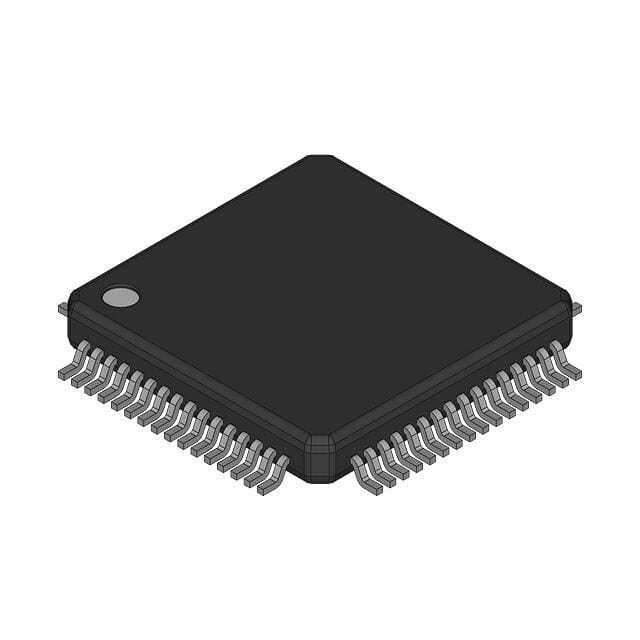

S9S08DZ32F2CLH

SKU: 42515

Manufacturer: NXP Semiconductors

MCU 8-bit S08 CISC 32KB Flash 3.3V/5V Automotive 64-Pin LQFP Tray

3480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	S08
Instruction Set Architecture	CISC
Device Core	S08
Core Architecture	S08
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	CAN/I2C/SCI/SPI
Number of I/Os	53
No. of Timers	2
PWM	8
Number of ADCs	Single
ADC Channels	24
ADC Resolution (bit)	12
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Pin Count	64
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	10
Package Width	10
PCB changed	64
