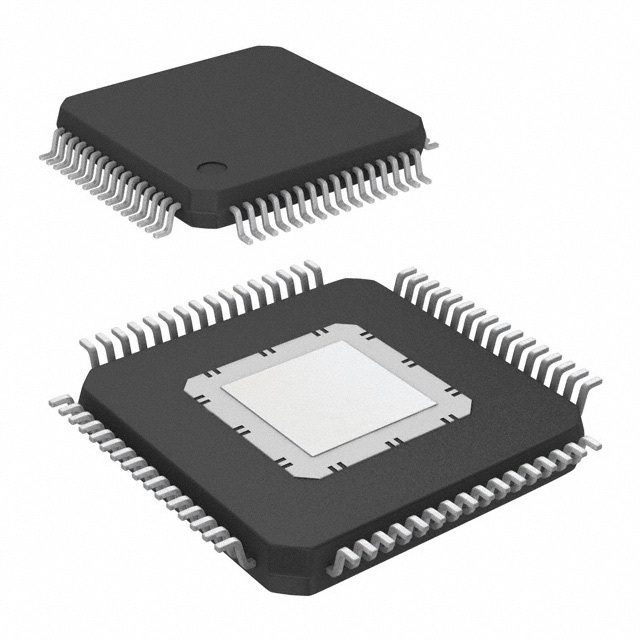

S912ZVMC64F3MKH

SKU: 23812

Manufacturer: NXP Semiconductors

MCU 16-bit S12Z CISC 64KB Flash 5V Automotive 64-Pin HLQPG EP Tray

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
Automotive	Yes
PPAP	Unknown
Family Name	HCS12
Instruction Set Architecture	CISC
Device Core	S12Z
Core Architecture	S12
Maximum CPU Frequency (MHz)	50
Maximum Clock Rate (MHz)	50
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	4KB
Programmability	Yes
Interface Type	CAN/SCI/SPI
Number of I/Os	31
No. of Timers	1
Number of ADCs	Dual
ADC Channels	9/9
ADC Resolution (bit)	12/12
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	4
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	HLQPG EP
Pin Count	64
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	10
Package Width	10
