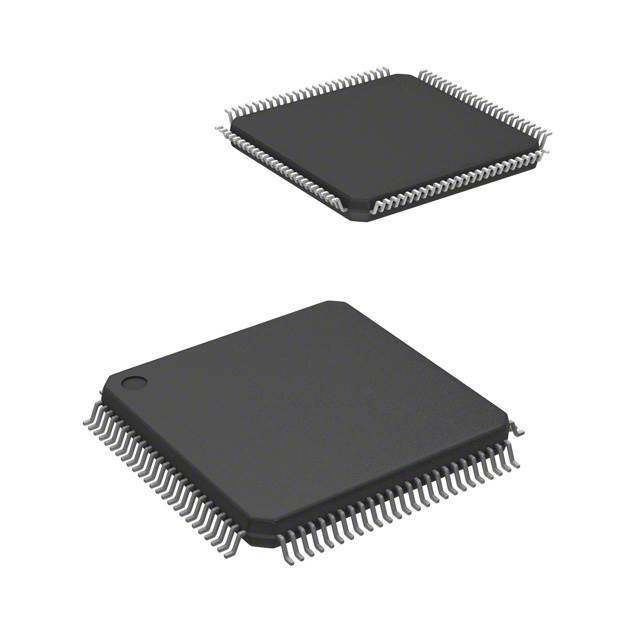

S912XHY128F0VLL

SKU: 66297

Manufacturer: NXP Semiconductors

MCU 16-bit HCS12X CISC 128KB Flash 5V Automotive 100-Pin LQFP Tray

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	HCS12X
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	8KB
Data Memory Size	8KB
Programmability	Yes
Interface Type	CAN/I2C/SCI/SPI
Number of I/Os	76
No. of Timers	16
PWM	8
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
LCD Segments	152
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	2
Ethernet	0
Watchdog	1
Parallel Master Port	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Packing Method	Tray
Pin Count	100
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	14
Package Width	14
PCB changed	100
