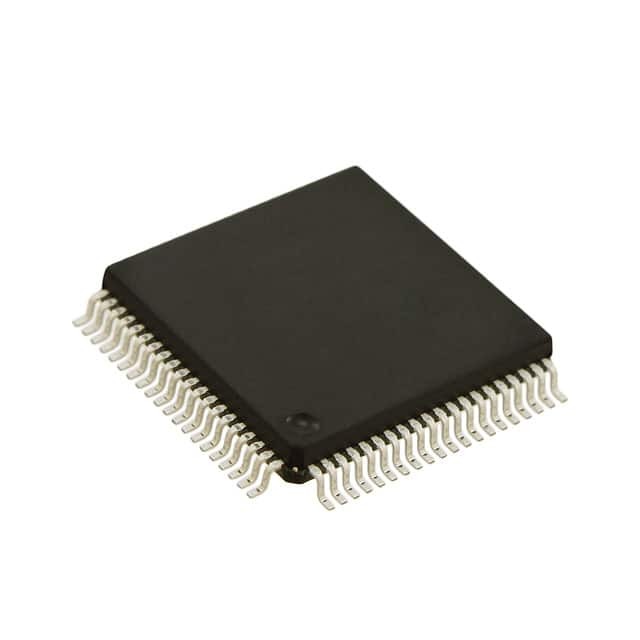

S912XET256J2MAA

SKU: 99004

Manufacturer: NXP Semiconductors

MCU 16-bit HCS12X RISC 256KB Flash 1.8V/2.8V/5V Automotive 80-Pin PQFP Tray

350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S12X
Instruction Set Architecture	RISC
Device Core	HCS12X
Core Architecture	S12
Maximum CPU Frequency (MHz)	50
Maximum Clock Rate (MHz)	50
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	16KB
Maximum Expanded Memory Size	4MB
Programmability	Yes
Interface Type	CAN/I2C/SCI/SPI
Number of I/Os	59
No. of Timers	1
PWM	8
Number of ADCs	Dual
ADC Channels	12/12
ADC Resolution (bit)	12/12
USART	0
UART	0
USB	0
SPI	3
I2C	2
I2S	0
CAN	5
Ethernet	0
Watchdog	1
Analog Comparators	4
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.72
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Pin Count	80
Standard Package Method	QFP
Original Package	PQFP
Terminal Form	Surface Mount
Package Height	2.4(Max)
Package Length	14.1(Max)
Package Width	14.1(Max)
PCB changed	80
