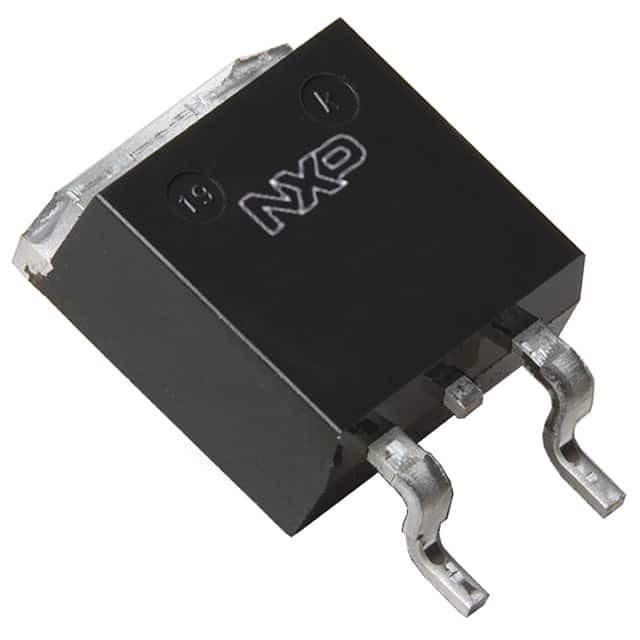

PSMN2R8-80BS

SKU: 28219

Manufacturer: NXP Semiconductors

Trans MOSFET N-CH 80V 120A 3-Pin(2+Tab) D2PAK

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	80
Maximum Gate Source Voltage (V)	20
Maximum Continuous Drain Current (A)	120
Maximum Drain Source Resistance (mOhm)	3@10V
Typical Gate Charge @ Vgs (nC)	135@10V
Typical Gate Charge @ 10V (nC)	139
Typical Input Capacitance @ Vds (pF)	9961@40V
Maximum Power Dissipation (mW)	306000
Typical Fall Time (ns)	44
Typical Rise Time (ns)	43
Typical Turn-Off Delay Time (ns)	109
Typical Turn-On Delay Time (ns)	41
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.5(Max)
Package Length	10.3(Max)
Package Width	9.4(Max)
PCB changed	2
