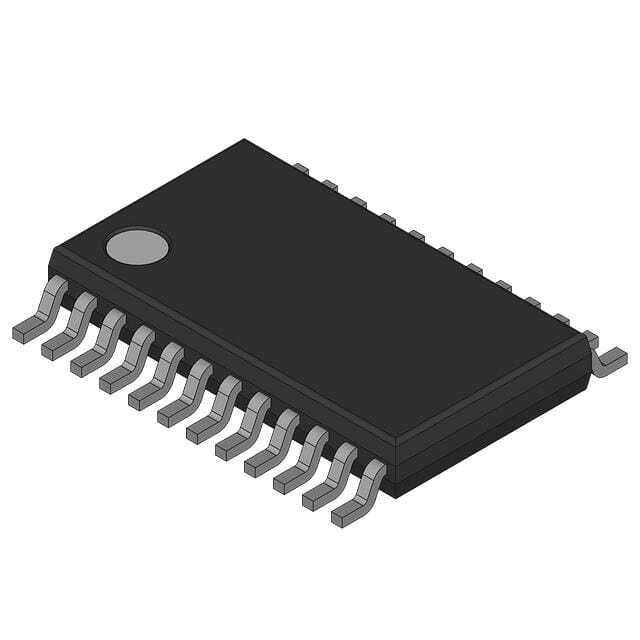

    PCA9548APW

    SKU: 98649
    Manufacturer: NXP Semiconductors
    High Performance Bus Switch IC
    135380 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Logic Function I2C Bus Switch
    Number of Elements per pcs 1
    Number of Inputs per Chip 8
    Number of Outputs per Chip 1
    Absolute Propagation Delay Time (ns) 0.3
    Maximum Propagation Delay Time @ Maximum CL (ns) 0.3@2.3V to 5.5V
    Maximum On Resistance (Ohm) 55
    Maximum Low Level Output Current (mA) 9(Typ)
    Operating Supply Voltage-Min (V) 2.3
    Typical Operating Supply Voltage (V) 2.5
    Operating Supply Voltage-Max (V) 5.5
    Maximum Quiescent Current (uA) 100
    Typical Quiescent Current (uA) 65
    Propagation Delay Test Condition (pF) 50
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Pin Count 24
    Standard Package Method SOP
    Original Package TSSOP
    Terminal Form Surface Mount
    Package Height 0.95(Max)
    Package Length 7.9(Max)
    Package Width 4.5(Max)
    PCB changed 24
