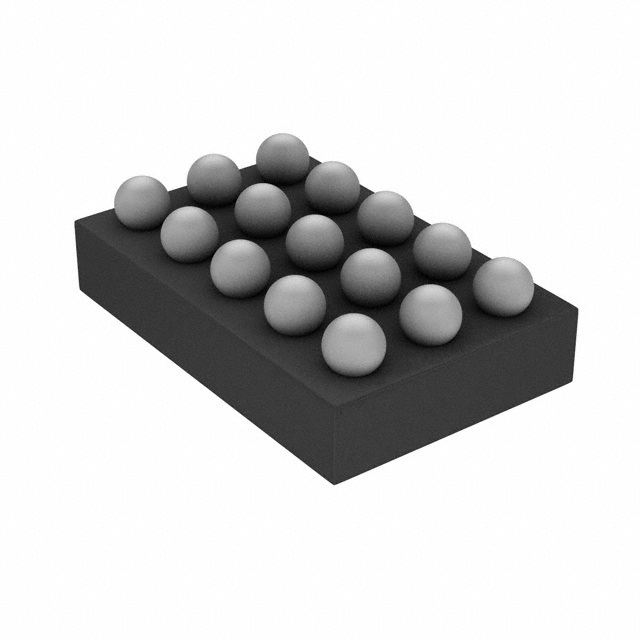

NX20P5090UKAZ

SKU: 126903

Manufacturer: NXP Semiconductors

USB Power Switch Single 20V 15-Pin WLCSP T/R

2860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	USB Power Switch
Number of Switches	1
Enable Logic	Active Low
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	20
Number of Outputs	1
Output Voltage Range (V)	0 to 5.5
Operating Supply Voltage Range (V)	2.5 to 20
Maximum Power Dissipation (mW)	1450
Switch On Resistance (mOhm)	30
Typical UVLO Threshold (V)	2.37
Operating Temperature-Min	-40
Operating Temperature-Max	85
Typical Turn-On Delay Time (us)	29200
Typical Turn-Off Delay Time (us)	23000
Typical Rise Time (us)	6900
Original Package	WLCSP
Pin Count	15
Terminal Form	Surface Mount
Package Height	0.33
Package Length	2.56
Package Width	1.54
