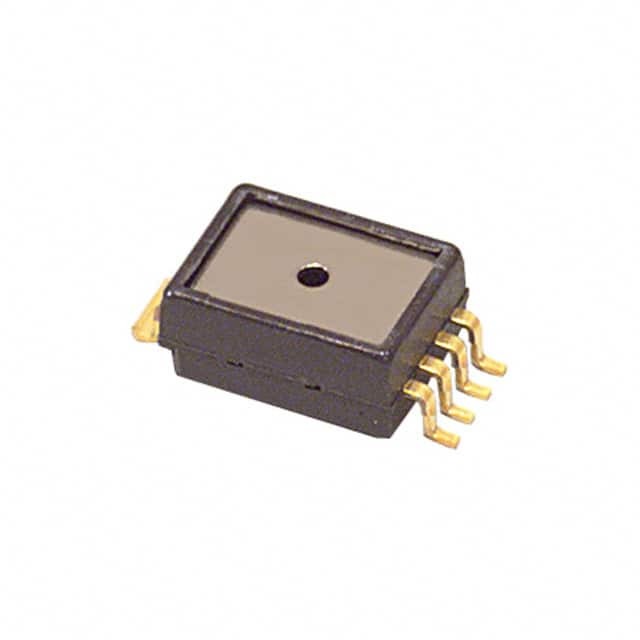

    MPXM2202D

    SKU: 143983
    Manufacturer: NXP Semiconductors
    Pressure Sensor 0V to 0.04V 0kPa to 200kPa Differential 5-Pin(4+Tab) M-PAC Tube
    2760 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive No
    PPAP No
    Device Pressure Type Differential
    Operating Pressure Range 0kPa to 200kPa
    Maximum Overload Pressure 400kPa
    Equivalent Overload Pressure Range (psi) 20 to 100
    Response Time (ms) 1
    Typical Full Scale Output 0.04V
    Typical Operating Supply Voltage (V) 10
    Operating Supply Voltage-Max (V) 16
    Maximum Supply Current (mA) 6(Typ)
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Media Air
    Packing Method Tube
    Pin Count 5
    Standard Package Method M-PAC
    Original Package M-PAC
    Terminal Form Surface Mount
    Package Height 3.94(Max)
    Package Length 6.48(Max)
    Package Width 8.51(Max)
    PCB changed 4
    Tab Tab
