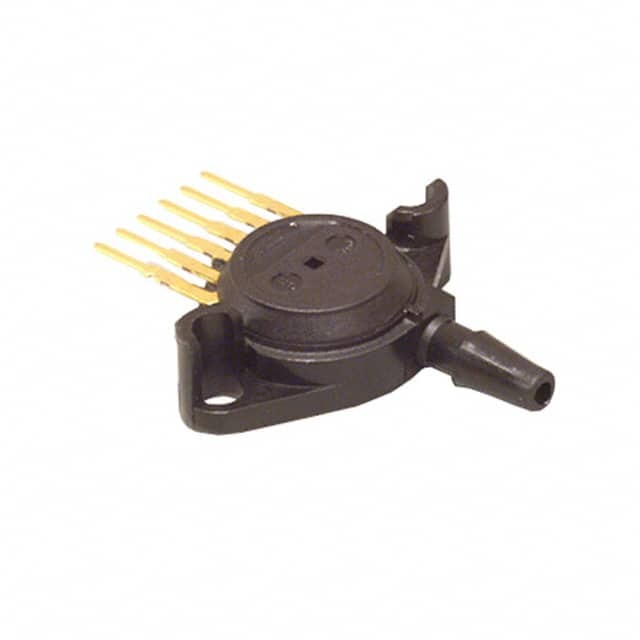

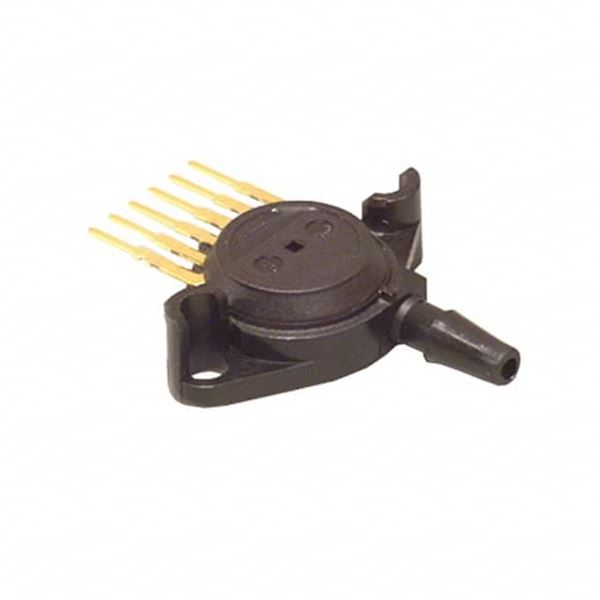

MPX5050GP

SKU: 80210

Manufacturer: NXP Semiconductors

Pressure Sensor 0.2V to 4.7V 0kPa to 50kPa Gage 6-Pin Case 867B-04 Tray

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Device Pressure Type	Gage
Operating Pressure Range	0kPa to 50kPa
Maximum Overload Pressure	200kPa
Equivalent Overload Pressure Range (psi)	20 to 100
Accuracy (%)	±2.5
Response Time (ms)	1
Typical Full Scale Output	4.7VDC
Output Voltage (V)	0.2 to 4.7
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (mA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	125
Media	Air
Packing Method	Tray
Original Package	Case 867B-04
Pin Count	6
Terminal Form	Through Hole
Package Height	29.34(Max)
Package Length	29.85(Max)
Package Width	8.26(Max)
