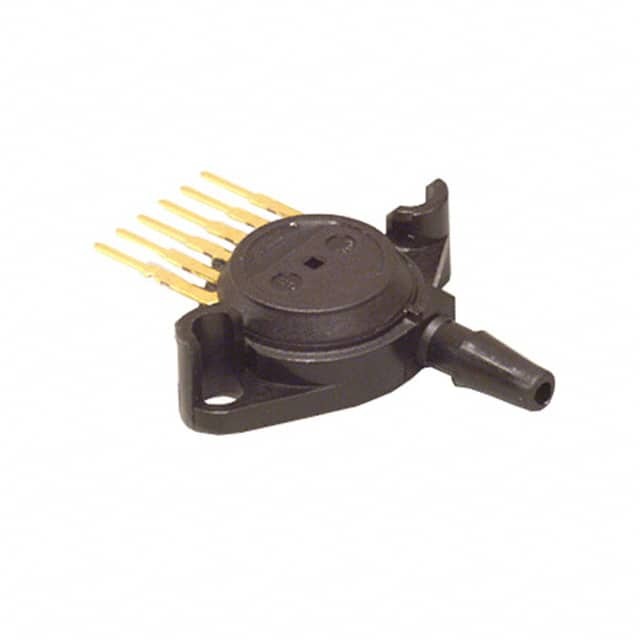

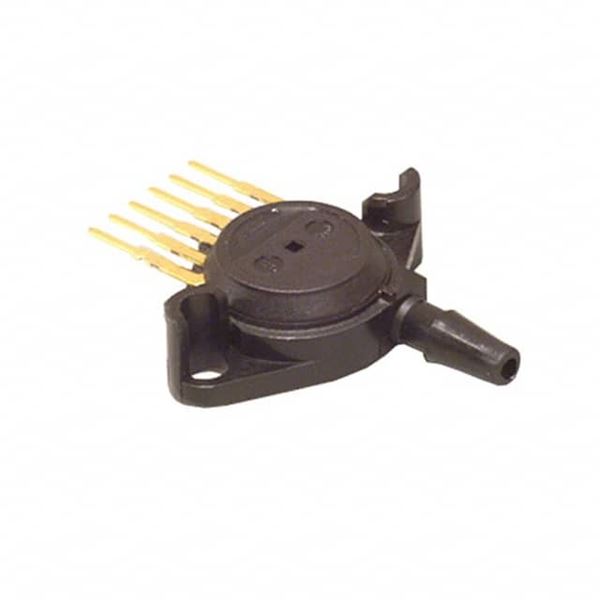

MPX4100AP

SKU: 158222

Manufacturer: NXP Semiconductors

Board Mount Pressure Sensor 0.3V to 4.9V 20kPa to 105kPa Absolute Automotive 6-Pin Case 867B-04 Tray

970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Device Pressure Type	Absolute
Operating Pressure Range	20kPa to 105kPa
Maximum Overload Pressure	400kPa
Equivalent Overload Pressure Range (psi)	20 to 100
Accuracy (%)	±1.8
Response Time (ms)	1
Typical Full Scale Output	4.897VDC
Output Voltage (V)	0.3 to 4.9
Operating Supply Voltage-Min (V)	4.85
Typical Operating Supply Voltage (V)	5.1
Operating Supply Voltage-Max (V)	5.35
Maximum Supply Current (mA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	125
Media	Air
Packing Method	Tray
Original Package	Case 867B-04
Pin Count	6
Standard Package Method	Case 867B-04
Terminal Form	Through Hole
Package Height	29.34
Package Length	29.85
Package Width	8.26
