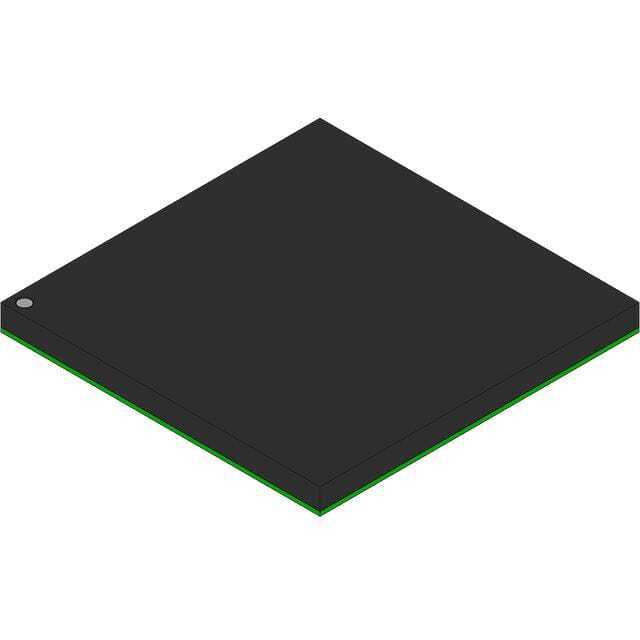

MPC8321ECVRAFDC

SKU: 148102

Manufacturer: NXP Semiconductors

MPU PowerQUICC II Pro MPC83xx Processor RISC 32bit 90nm 333MHz 1.8V/2.5V/3.3V 516-Pin TEBGA Tray

180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A002.a.1
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	PowerQUICC II Pro MPC83xx Processor
Instruction Set Architecture	RISC
Device Core	e300
Number of CPU Cores	1
Data Bus Width (bit)	32
Instruction Cache Size	16KB
Maximum Speed (MHz)	333
Interface Type	I2C/SPI/UART/USB
UART	2
USART	0
Data Cache Size	16KB
USB	1
Multiply Accumulate	No
SPI	2
I2C	1
I2S	0
CAN	0
Ethernet	0
Ethernet Speed	10Mbps/100Mbps
Operating Supply Voltage-Min (V)	0.95
Typical Operating Supply Voltage (V)	1
Operating Supply Voltage-Max (V)	1.05
I/O Voltage (V)	1.8
Maximum Power Dissipation (mW)	1620
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	TEBGA
Pin Count	516
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.95(Max)
Package Length	27
Package Width	27
PCB changed	516
