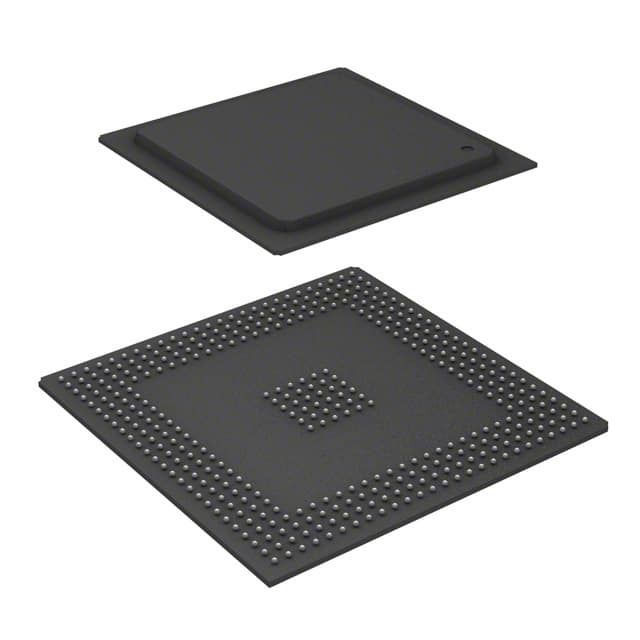

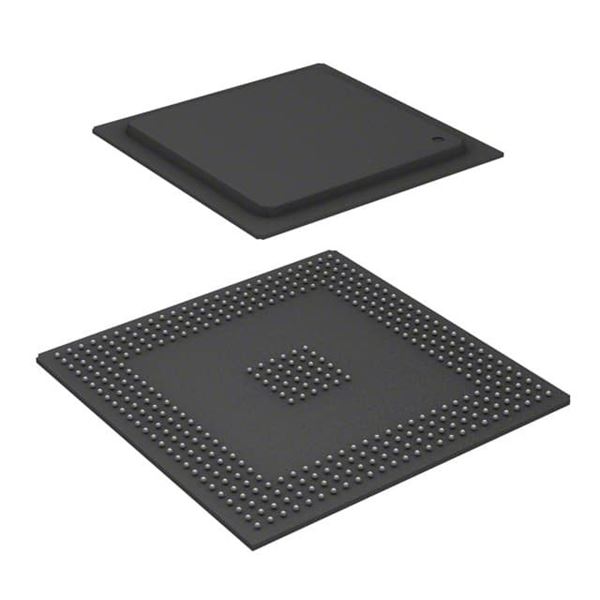

MPC563MZP56

SKU: 126775

Manufacturer: NXP Semiconductors

MCU 32-bit PowerPC RISC 512KB Flash 2.6V/5V Automotive 388-Pin BGA Tray

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991A2
Part Status	NRND
HTS	8542.31.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	PowerPC
Core Architecture	e200
Maximum CPU Frequency (MHz)	56
Maximum Clock Rate (MHz)	56
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	32KB
Programmability	Yes
Interface Type	CAN/SCI/SPI/UART
Number of I/Os	56
No. of Timers	2
Timers Channels	54
PWM	12
Number of ADCs	Dual
ADC Channels	32/32
ADC Resolution (bit)	10/10
USART	0
UART	1
USB	0
SPI	1
I2C	0
I2S	0
CAN	2
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	2.6
Operating Supply Voltage-Max (V)	2.7
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	BGA
Pin Count	388
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.95(Max)
Package Length	27
Package Width	27
PCB changed	388
