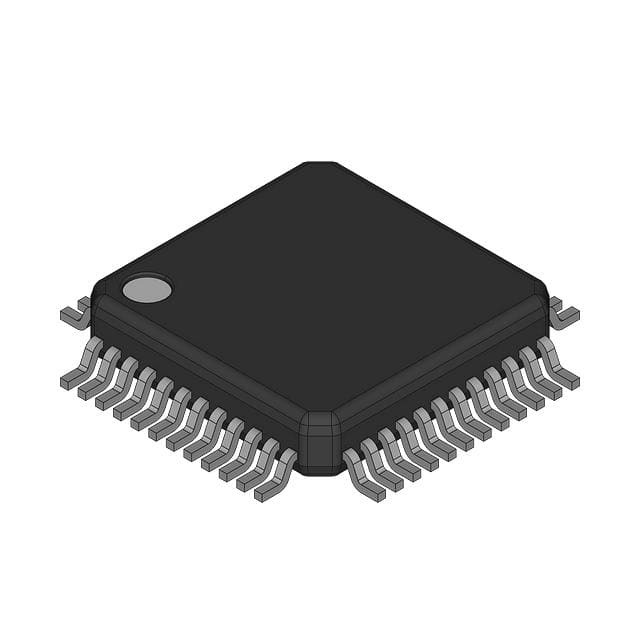

MKV30F64VLF10

SKU: 148035

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M4 RISC 64KB Flash 1.8V/2.5V/3.3V 48-Pin LQFP Tray

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	KV3x
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	100
Maximum Clock Rate (MHz)	100
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	16KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	35
No. of Timers	6
PWM	1
Number of ADCs	Dual
ADC Channels	2
ADC Resolution (bit)	16/16
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	2
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	48
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	7
Package Width	7
PCB changed	48
