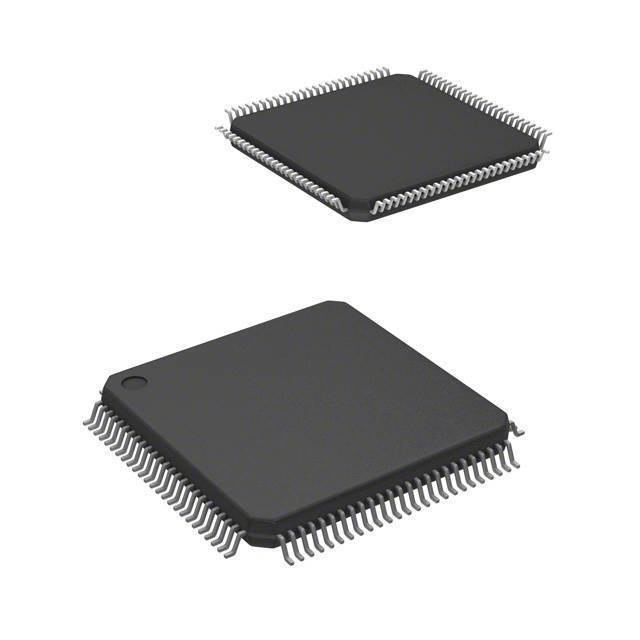

MKE18F512VLL16

SKU: 73183

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M4F RISC 512KB Flash 3.3V/5V 100-Pin LQFP Tray

3750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	KE1xF
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4F
Core Architecture	ARM
Maximum CPU Frequency (MHz)	168
Maximum Clock Rate (MHz)	168
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	64KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	CAN/I2C/SPI/UART
Number of I/Os	89
No. of Timers	7
PWM	4
Number of ADCs	Triple
ADC Channels	16/16/16
ADC Resolution (bit)	12/12/12
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	12
USART	0
UART	3
USB	0
SPI	2
I2C	2
I2S	0
CAN	2
Ethernet	0
Watchdog	2
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	14
Package Width	14
PCB changed	100
