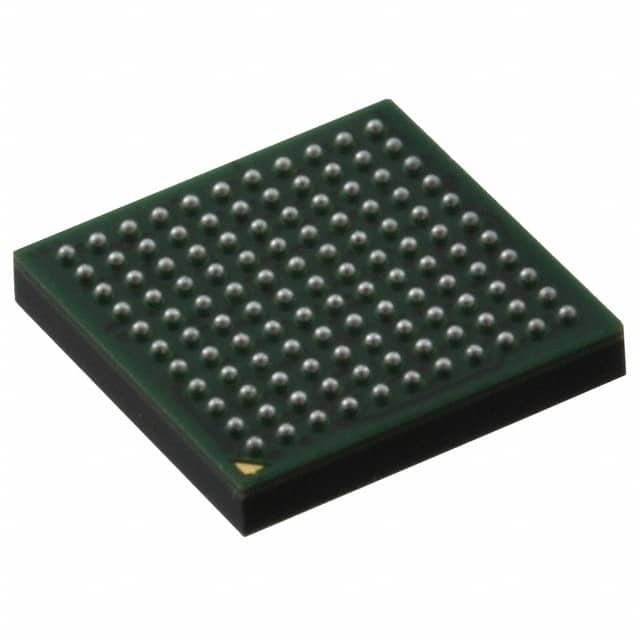

MK81FN256VDC15

SKU: 140988

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M4 RISC 256KB Flash 3.3V 121-Pin MAP-BGA Tray

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	K8x
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	150
Maximum Clock Rate (MHz)	150
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	256KB
Programmability	Yes
Interface Type	I2C/I2S/SPI/UART
Number of I/Os	85
PWM	2
Number of ADCs	Single
ADC Channels	17
ADC Resolution (bit)	16
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	0
UART	4
USB	0
SPI	3
I2C	4
I2S	1
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	MAP-BGA
Pin Count	121
Terminal Form	Surface Mount
Package Height	0.41(Max)
Package Length	8
Package Width	8
