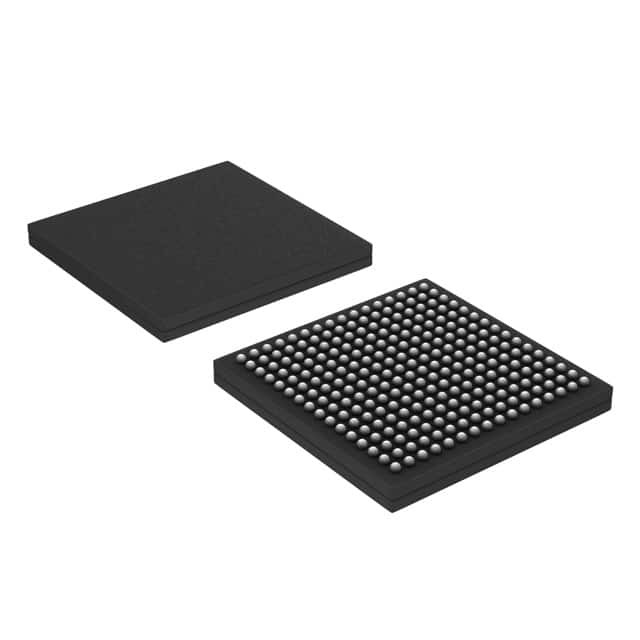

MK70FN1M0VMJ12

SKU: 34796

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M4 RISC 1MB Flash 1.8V/2.5V/3.3V 256-Pin LBGA Tray

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	K70
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	128KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USB
Number of I/Os	128
No. of Timers	10
Number of ADCs	Quad
ADC Resolution (bit)	16/16/16/16
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	0
UART	6
USB	2
SPI	3
I2C	2
I2S	2
CAN	2
Ethernet	1
Analog Comparators	4
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LBGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.27(Max)
Package Length	17
Package Width	17
PCB changed	256
