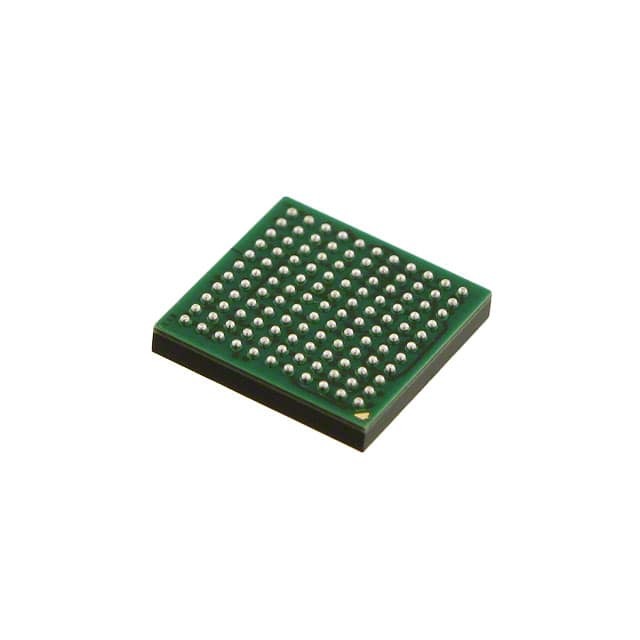

MK22FX512VMC12

SKU: 70201

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M4 RISC 512KB Flash 3.3V Automotive 121-Pin MAP-BGA Tray

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	NRND
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	K22
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	64KB
Programmability	Yes
Interface Type	CAN/I2C/I2S/SPI/UART/USB
Number of I/Os	64
No. of Timers	5
PWM	4
Number of ADCs	Dual
ADC Channels	38
ADC Resolution (bit)	16/16
Number of DACs	Dual
DAC Resolution (bit)	12/12
USART	0
UART	6
USB	2
SPI	3
I2C	3
I2S	1
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	MAP-BGA
Pin Count	121
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.27(Max)
Package Length	8
Package Width	8
PCB changed	121
