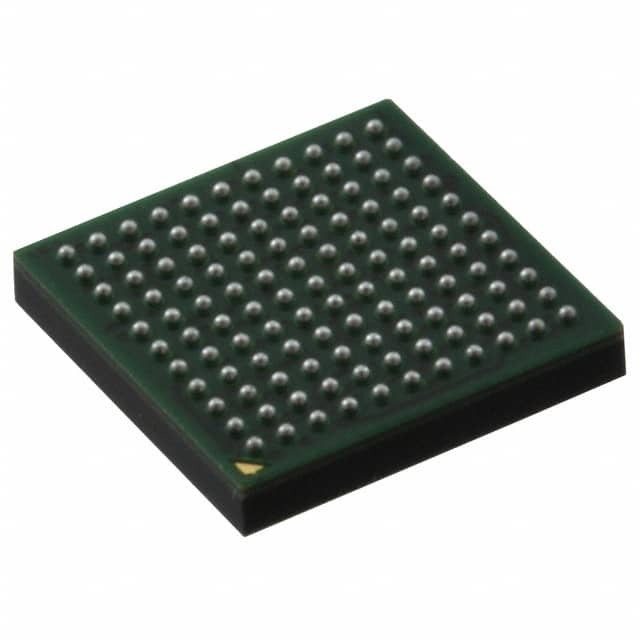

MK21DX256AVMC5

SKU: 105468

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M4 RISC 256KB Flash 1.8V/2.5V/3.3V Automotive 121-Pin MAP-BGA Tray

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	K21
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4
Core Architecture	ARM
Maximum CPU Frequency (MHz)	50
Maximum Clock Rate (MHz)	50
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	32KB
Programmability	Yes
Interface Type	I2C/I2S/SPI/UART
Number of I/Os	64
No. of Timers	7
PWM	1
Number of ADCs	Single
ADC Channels	20
ADC Resolution (bit)	16
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	12
USART	0
UART	6
USB	0
SPI	2
I2C	2
I2S	1
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Commercial
Packing Method	Tray
Original Package	MAP-BGA
Pin Count	121
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.18(Max)
Package Length	8
Package Width	8
PCB changed	121
