MCIMX6G1CVM05AB

SKU: 94277

Manufacturer: NXP Semiconductors

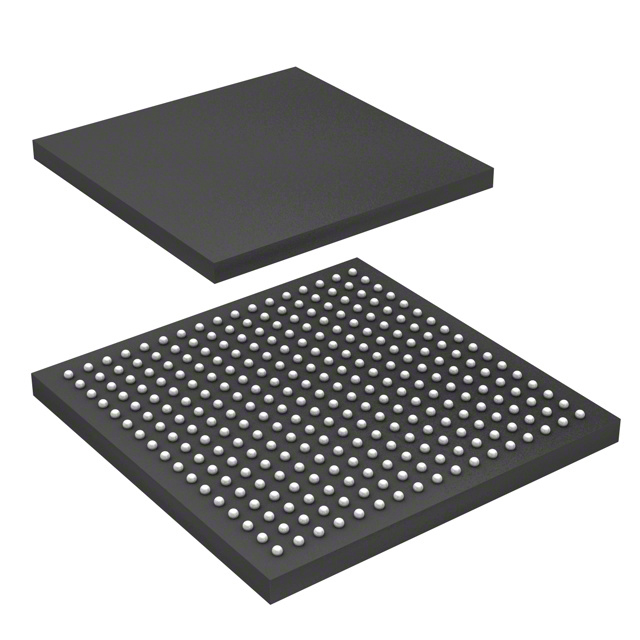

SOC i.MX 6UltraLite ARM Cortex A7 40nm 289-Pin MAP-BGA Tray

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	i.MX 6UltraLite
Device Core	ARM Cortex A7
Maximum Clock Rate (MHz)	528
Program Memory Type	ROM
Data Bus Width (bit)	32
Program Memory Size	96KB
RAM Size	160KB
Type	Applications Processor
Processing Unit	Microprocessor
PWM	8
Watchdog	3
Operating Temperature-Min	-40
Operating Temperature-Max	105
Interface Type	CAN/Ethernet/I2C/I2S/SPI/UART/USB
SPI	4
I2C	4
I2S	3
UART	8
Data Cache Size	32KB
USB	2
Instruction Cache Size	32KB
USART	0
CAN	2
PCI	0
Ethernet	2
Programmability	Yes
Core Architecture	ARM
Ethernet Speed	10Mbps/100Mbps
Packing Method	Tray
Original Package	MAP-BGA
Pin Count	289
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	14
Package Width	14
