MC9S08PA8AVLD

SKU: 143934

Manufacturer: NXP Semiconductors

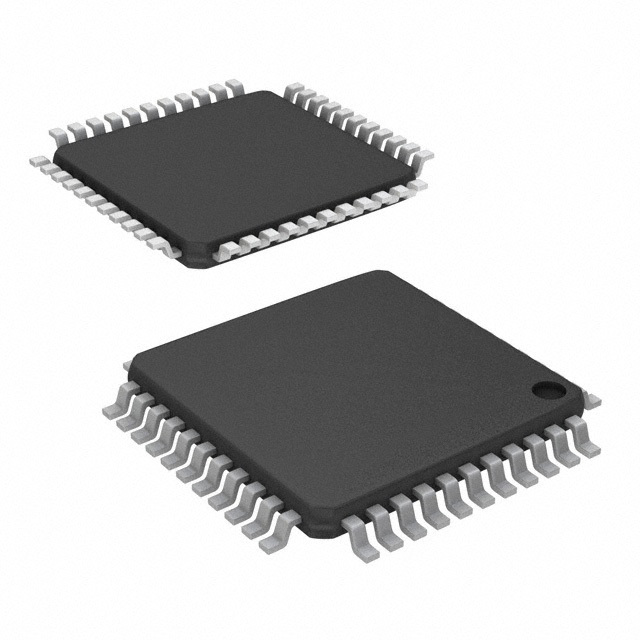

MCU 8-bit S08 CISC 8KB Flash 3.3V/5V 44-Pin LQFP Tray

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	S08
Instruction Set Architecture	CISC
Device Core	S08
Core Architecture	S08
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	2KB
Maximum Expanded Memory Size	4KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	37
No. of Timers	2
Timers Resolution (bit)	16/16
Timers Channels	2/6
PWM	1
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Pin Count	44
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	10
Package Width	10
PCB changed	44
