MC9S08GW32CLK

SKU: 80149

Manufacturer: NXP Semiconductors

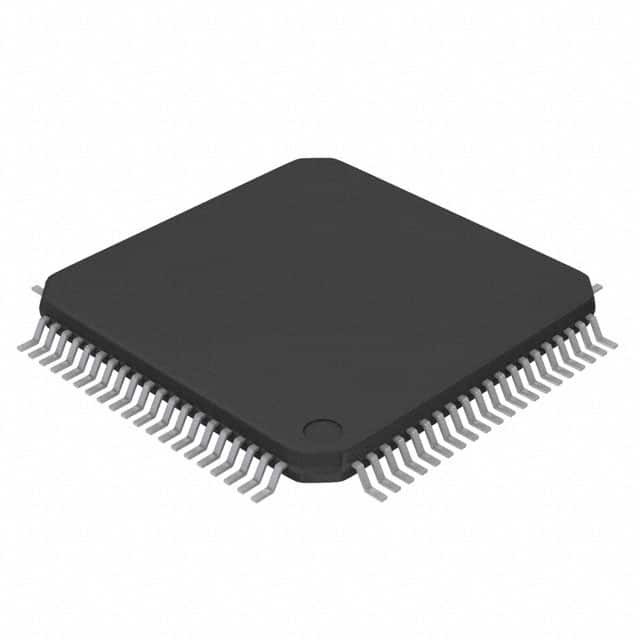

MCU 8-bit S08 CISC 32KB Flash 2.5V/3.3V 80-Pin LQFP Tray

3930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	S08
Instruction Set Architecture	CISC
Device Core	S08
Core Architecture	S08
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SCI/SPI
Number of I/Os	45
No. of Timers	5
Number of ADCs	Dual
ADC Channels	7/7
ADC Resolution (bit)	16/16
LCD Segments	288
USART	0
UART	0
USB	0
SPI	3
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	3
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LQFP
Pin Count	80
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	14
Package Width	14
PCB changed	80
