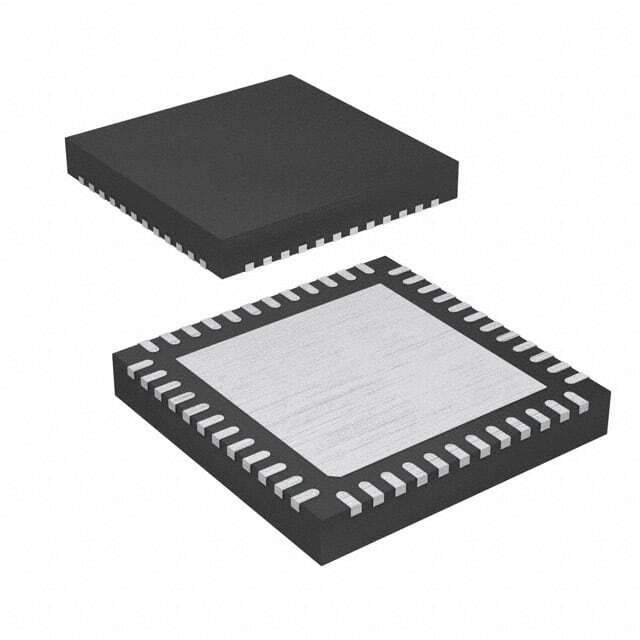

MC9S08AW32CFDE

SKU: 66134

Manufacturer: NXP Semiconductors

MCU 8-bit S08 CISC 32KB Flash 3.3V/5V 48-Pin QFN EP Tray

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	S08
Instruction Set Architecture	CISC
Device Core	S08
Core Architecture	S08
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SCI/SPI
Number of I/Os	38
No. of Timers	2
PWM	8
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	QFN EP
Pin Count	48
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	7
Package Width	7
PCB changed	48
