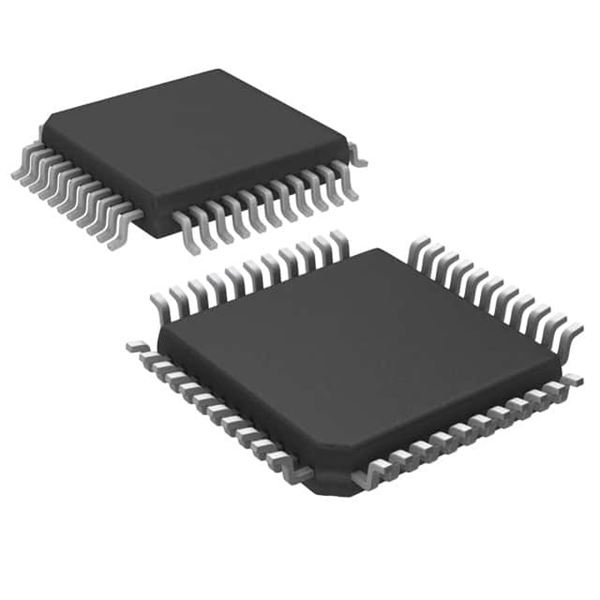

MC908AP16ACFBE

SKU: 122676

Manufacturer: NXP Semiconductors

MCU 8-bit HC08 CISC 16KB Flash 5V 44-Pin PQFP Tray

3940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	HC08
Instruction Set Architecture	CISC
Device Core	HC08
Core Architecture	HC08
Maximum CPU Frequency (MHz)	8
Maximum Clock Rate (MHz)	8
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	16KB
RAM Size	1KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	SCI/SPI
Number of I/Os	32
No. of Timers	4
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Analog Comparators	2
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	PQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	2.1(Max)
Package Length	10
Package Width	10
PCB changed	44
