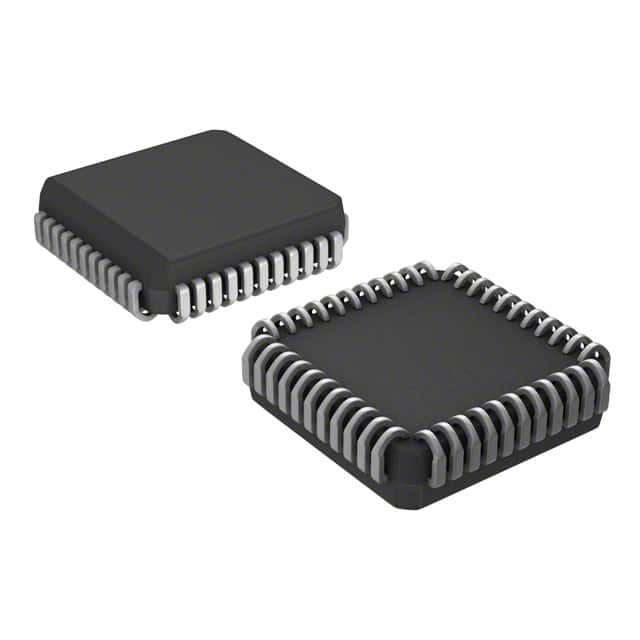

MC68HC705C8ACFN

SKU: 13375

Manufacturer: NXP Semiconductors

MCU 8-bit HC05 CISC 8KB EPROM 3.3V/5V 44-Pin PLCC

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.32
SVHC	Yes
Automotive	No
PPAP	No
Family Name	HC05
Instruction Set Architecture	CISC
Device Core	HC05
Core Architecture	HC05
Maximum CPU Frequency (MHz)	2.1
Maximum Clock Rate (MHz)	2.1
Data Bus Width (bit)	8
Program Memory Type	EPROM
Program Memory Size	8KB
RAM Size	304B
Programmability	Yes
Interface Type	SCI/SPI
Number of I/Os	24
No. of Timers	1
Timers Resolution (bit)	16
PWM	1
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Original Package	PLCC
Pin Count	44
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.69(Min)
Package Length	16.66(Max)
Package Width	16.66(Max)
PCB changed	44
