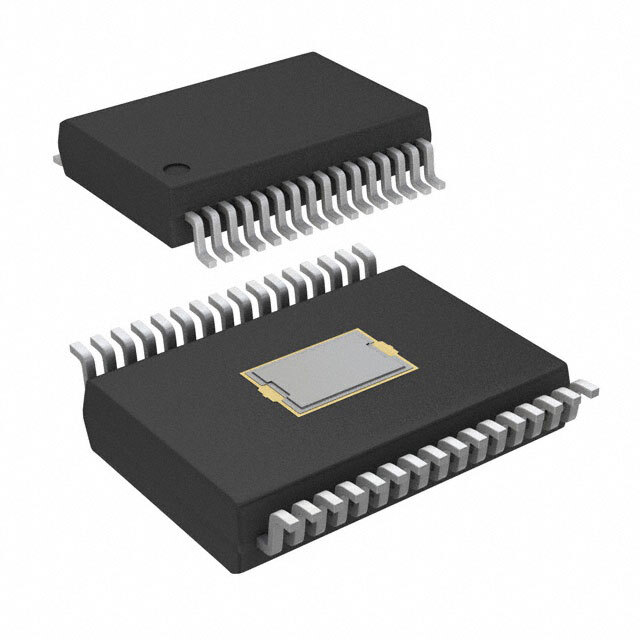

MC33HB2001EK

SKU: 80145

Manufacturer: NXP Semiconductors

H-Bridge Motor Driver Automotive 32-Pin SOIC W EP Tube

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Type	Motor Driver
Motor Type	Brush DC Motor
Control Interface	SPI
Output Configuration	H-Bridge
Output Voltage (V)	-0.3 to 42
Maximum Output Current (A)	3
Maximum Peak Output Current (A)	10(Min)
Operating Supply Voltage-Min (V)	5
Operating Supply Voltage (V)	5 to 28
Operating Supply Voltage-Max (V)	28
Maximum Operating Current (mA)	20
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	SOIC W EP
Pin Count	32
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	11.1(Max)
Package Width	7.6(Max)
PCB changed	32
