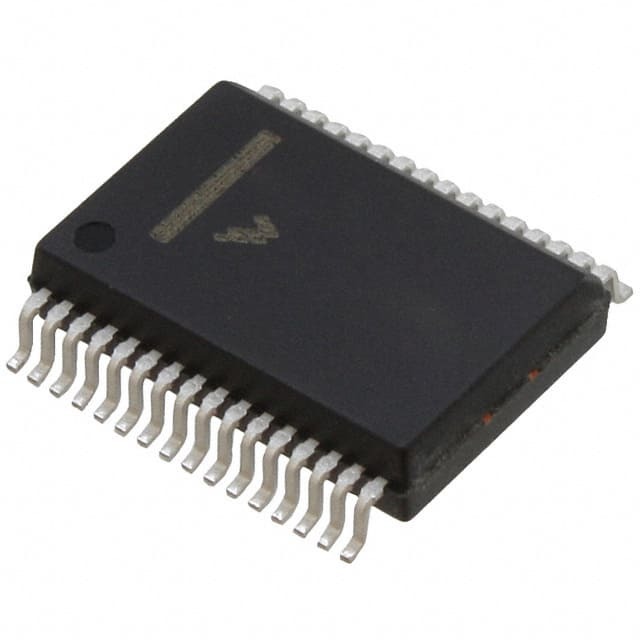

MC33797BPEW

SKU: 112403

Manufacturer: NXP Semiconductors

Driver 1-OUT High Side/Low Side Inv/Non-Inv Automotive 32-Pin SOIC W Tube

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Driver Type	High Side
Driver Configuration	Inverting
Number of Drivers	1
High and Low Sides Dependency	Independent
Type	FET
Number of Outputs	1
Maximum Rise Time (ns)	20
Maximum Fall Time (ns)	20
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (mA)	15(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Special Features	Current Limit
Maximum Turn-On Delay Time (ns)	72000
Maximum Turn-Off Delay Time (ns)	10000
Latch-Up Proof	No
Pin Count	32
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.36(Max)
Package Length	11.1(Max)
Package Width	7.6(Max)
PCB changed	32
