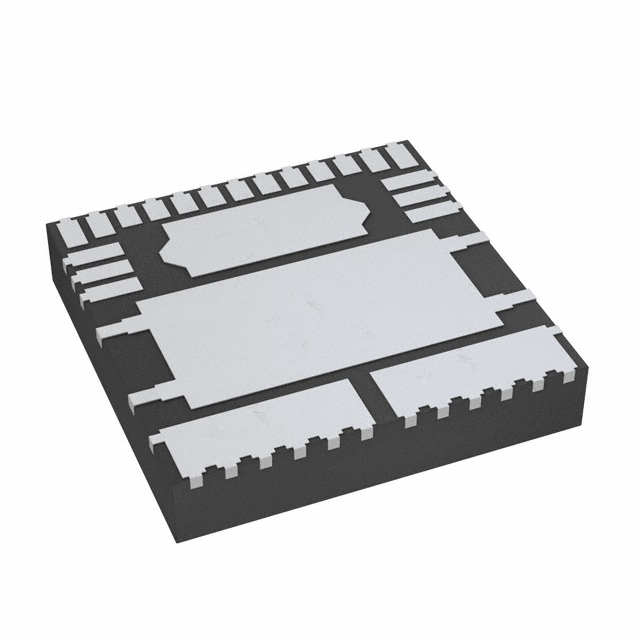

MC20XS4200BFK

SKU: 84092

Manufacturer: NXP Semiconductors

Power Switch Hi Side 1-OUT 0.02Ohm Automotive 23-Pin QFN EP Tray

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	High Side
Number of Outputs	1
Interface Type	Serial
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	58
Operating Supply Voltage Range (V)	3 to 5.5
Supply Current (mA)	6.5
Switch On Resistance (Ohm)	0.02(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Pin Count	23
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	2.15(Max)
Package Length	12
Package Width	12
PCB changed	23
