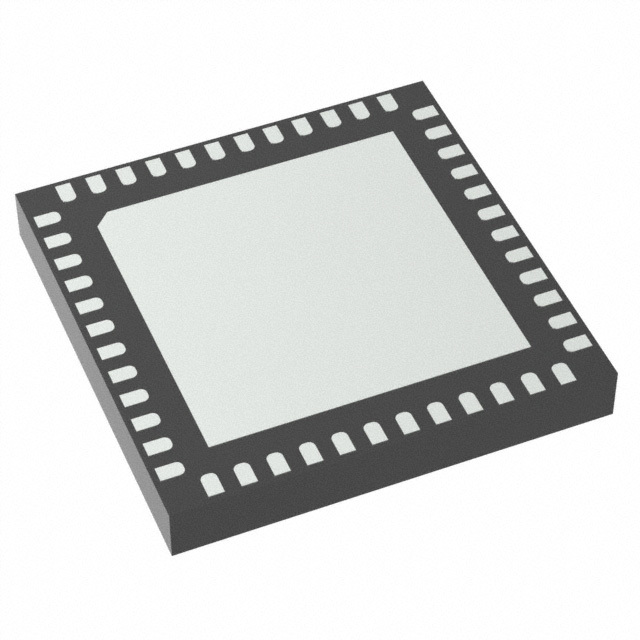

MC13234CHT

SKU: 87264

Manufacturer: NXP Semiconductors

802.15.4/ZigBee 2480MHz 250Kbps 48-Pin MAP-LGA Tray

4410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A002a.1.
Part Status	NRND
HTS	8542.31.00.01
Automotive	No
PPAP	No
Module/IC Classification	IC
Modulation Technique	OQPSK
Solutions	ISM
RAM Size (KB)	8
Flash Size (KB)	128
Number of Channels	16
Maximum Data Rate (Kbps)	250(Typ)
Minimum Operating Frequency (MHz)	2405
Maximum Operating Frequency (MHz)	2480
ISM Band	2.4GHz
Typical Sensitivity	-93dBm
Protocol Stack	802.15.4/ZigBee
Interface	I2C/SPI/UART/SCI
Maximum Output Power	2dBm(Typ)
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.7
Operating Supply Voltage-Max (V)	3.6
Application	DTV
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Standard Package Method	LGA
Original Package	MAP-LGA
Pin Count	48
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	7
Package Width	7
PCB changed	48
