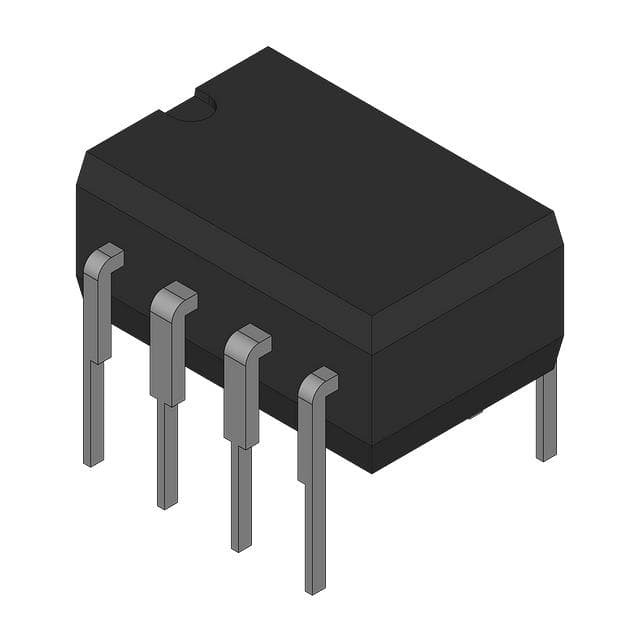

DS3695N

SKU: 11478

Manufacturer: NXP Semiconductors

Single Transmitter/Receiver RS-422/RS-485 8-Pin PDIP Rail

5670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Line Transceiver
Transmitter Communication Type	RS-422
Receiver Communication Type	RS-422
Interface Standards	EIA-485
Data Transmission Topology	Multidrop
Number of Transceivers	1
Number of Transmitters	1
Number of Receivers	1
Transmitter Signal Type	Differential
Receiver Signal Type	Differential
Number of Drivers per Line	1@RS-422
Number of Receivers per Line	1@RS-422
Driving Mode	3-State
Number of Transmitter Enables	1
Number of Receiver Enables	1
Operating Temperature-Min	0
Operating Temperature-Max	70
Power Supply Type	Single
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current (mA)	60
Supplier Temperature Grade	Commercial
Isolation	No
Packing Method	Rail
Pin Count	8
Original Package	PDIP
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
