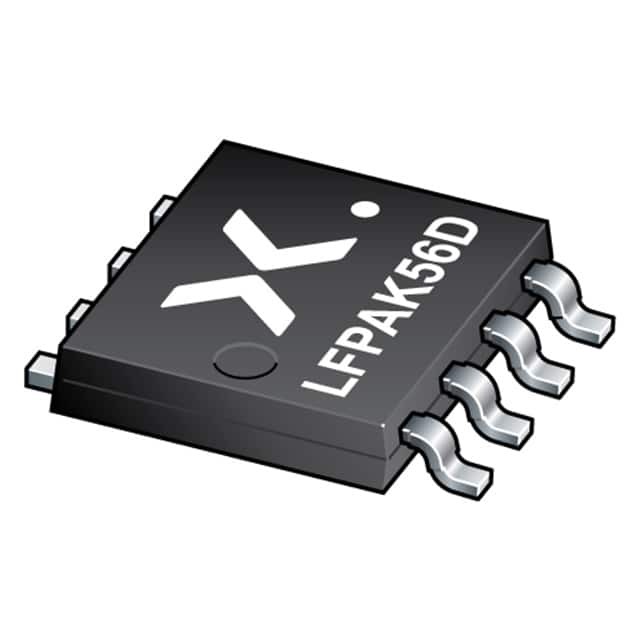

    BUK7K5R1-30E

    SKU: 136287
    Manufacturer: NXP Semiconductors
    Trans MOSFET N-CH 30V 40A Automotive 8-Pin LFPAK-D
    2050 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Yes
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Dual Dual Drain
    Process Technology TMOS
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 2
    Maximum Drain Source Voltage (V) 30
    Maximum Gate Source Voltage (V) 20
    Maximum Gate Threshold Voltage (V) 4
    Maximum Continuous Drain Current (A) 40
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 5.1@10V
    Typical Gate Charge @ Vgs (nC) 31.1@10V
    Typical Gate Charge @ 10V (nC) 31.1
    Typical Input Capacitance @ Vds (pF) 1764@25V
    Maximum Power Dissipation (mW) 68000
    Typical Fall Time (ns) 13
    Typical Rise Time (ns) 12.5
    Typical Turn-Off Delay Time (ns) 19.5
    Typical Turn-On Delay Time (ns) 9.5
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Supplier Temperature Grade Automotive
    Original Package LFPAK-D
    Pin Count 8
    Terminal Form Surface Mount
    Package Height 1.05(Max)
    Package Length 5.3(Max)
    Package Width 4.7(Max)
