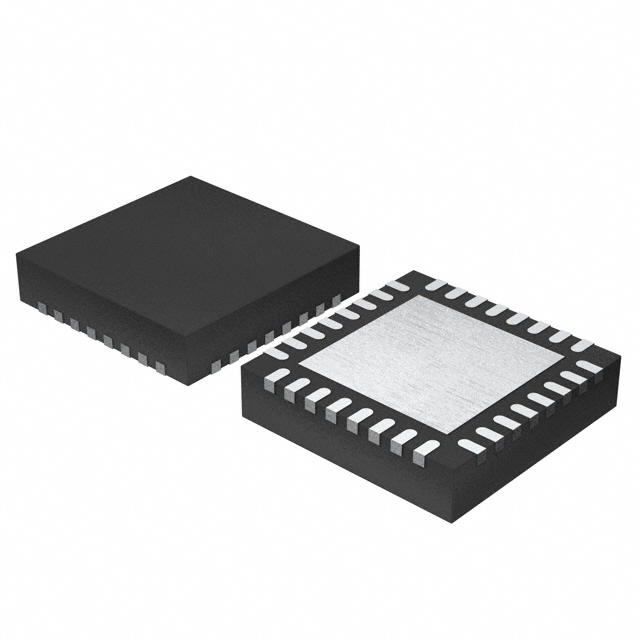

BGA7210X

SKU: 81689

Manufacturer: NXP Semiconductors

RF Amp Single VGA 3.8GHz 5.25V 32-Pin HVQFN EP T/R

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Variable Gain Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	3800
Typical Gain Flatness (dB)	1(Max)
Typical Power Gain (dB)	26@3800MHz
Typical Output Power (dBm)	19@3800MHz
Typical Output Intercept Point (dBm)	27@3800MHz
Maximum Input Return Loss (dB)	10(Min)@3800MHz
Maximum Output Return Loss (dB)	7(Min)@3800MHz
Typical Noise Figure (dB)	28.5@3800MHz
Operating Supply Voltage-Max (V)	5.25
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current (mA)	85(Typ)
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	HVQFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.85 - 0.05(Max)
Package Length	5.1(Max)
Package Width	5.1(Max)
PCB changed	32
