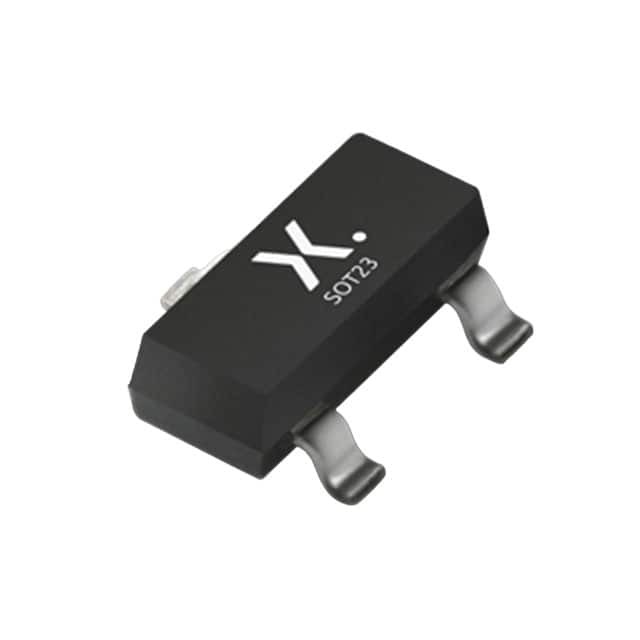

BC846B.215

SKU: 81666

Manufacturer: NXP Semiconductors

Trans GP BJT NPN 65V 0.1A 250mW Automotive 3-Pin TO-236AB T/R

1830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
SVHC	Yes
Type	NPN
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	80
Collector-Emitter Voltage-Max (V)	65
Maximum Emitter Base Voltage (V)	6
Operating Junction Temperature (°C)	150
Maximum Base Emitter Saturation Voltage (V)	0.76(Typ)@0.5mA@10mA
Maximum Collector-Emitter Saturation Voltage (V)	0.2@0.5mA@10mA
Maximum DC Collector Current (A)	0.1
Maximum Collector Cut-Off Current (nA)	15
Minimum DC Current Gain	200@2mA@5V
Maximum Power Dissipation (mW)	250
Maximum Transition Frequency (MHz)	100(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	TO-236AB
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3(Max)
Package Width	1.4(Max)
PCB changed	3
