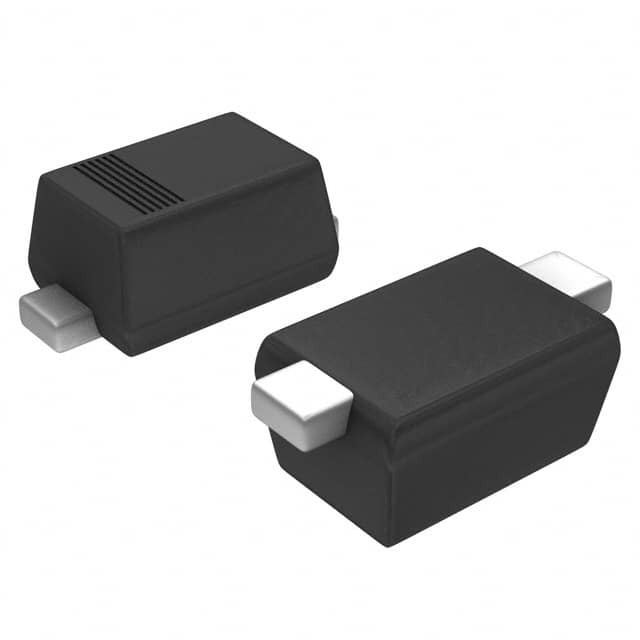

BAP70-02

SKU: 81628

Manufacturer: NXP Semiconductors

PIN Diode Attenuator 50V 100mA Automotive 2-Pin SOD-523

51450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Type	Attenuator
Configuration	Single
Maximum Reverse Voltage (V)	50
Maximum Reverse Leakage Current (uA)	0.1
Maximum Forward Current (mA)	100
Maximum Forward Voltage (V)	1.1@50mA
Maximum Series Resistance @ Maximum IF (Ohm)	1.9@100mA
Maximum Series Resistance @ Minimum IF (Ohm)	100@0.5mA
Maximum Diode Capacitance (pF)	0.25@20V
Maximum Power Dissipation (mW)	415
Typical Carrier Life Time (us)	1.25
Operating Temperature-Min	-65
Operating Temperature-Max	150
Pin Count	2
Standard Package Method	SOD
Original Package	SOD-523
Terminal Form	Surface Mount
Package Height	0.65(Max)
Package Length	1.25(Max)
Package Width	0.85(Max)
PCB changed	2
