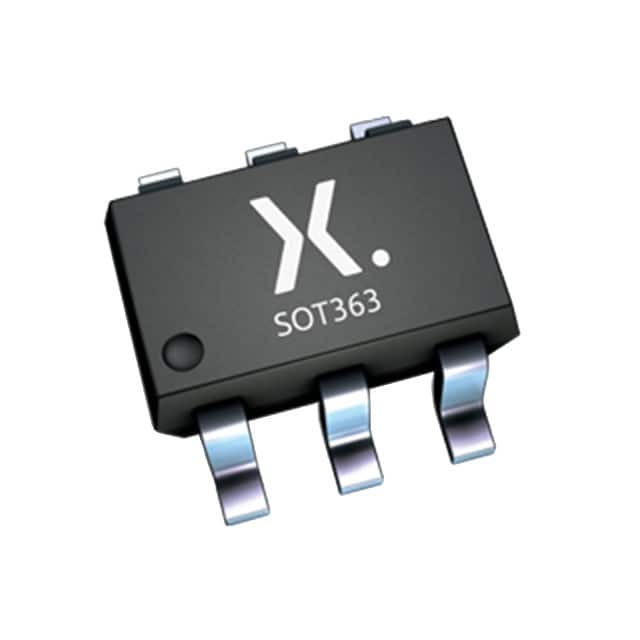

74LVC1T45GW-Q100

SKU: 31483

Manufacturer: NXP Semiconductors

Voltage Level Translator 1-CH Bidirectional Automotive 6-Pin TSSOP T/R

890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Logic Family	LVC
Logic Function	Voltage Level Translator
Channel Type	Bidirectional
Number of Channels	1
Maximum Propagation Delay Time @ Maximum CL (ns)	10.6(Typ)@1.2V
Absolute Propagation Delay Time (ns)	48.6
Process Technology	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	32
Maximum High Level Output Current (mA)	-32
Operating Supply Voltage-Min (V)	1.2
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.016
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	6
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
