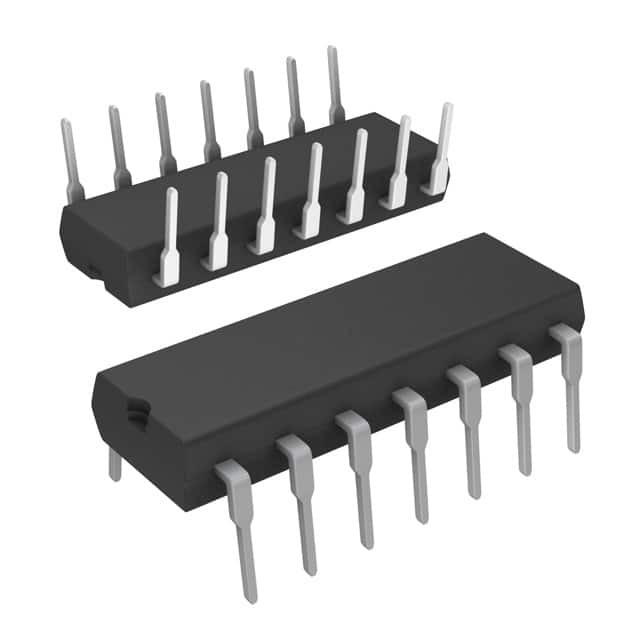

74HCT132N NXP Semiconductors

74HCT132N

SKU: 116325

Manufacturer: NXP Semiconductors

NAND Gate 4-Element 2-IN CMOS 14-Pin PDIP

Download sample

Request Free Samples

75210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Logic Family	HCT
Logic Function	NAND
Number of Elements per pcs	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	33@4.5V
Absolute Propagation Delay Time (ns)	50
Process Technology	CMOS
Input Type	Schmitt Trigger
Maximum Low Level Output Current (mA)	4
Maximum High Level Output Current (mA)	-4
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	2
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	PDIP
Pin Count	14
Terminal Form	Through Hole
Package Height	3.2(Max)
Package Length	19.5(Max)
Package Width	6.48(Max)
