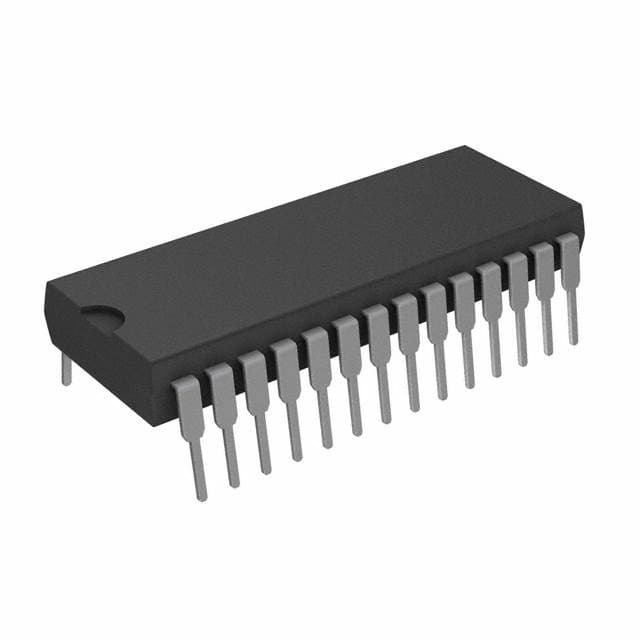

ISD1730PY

SKU: 40371

Manufacturer: Nuvoton Technology Corporation

60s Voice Record and Playback 160kOhm 2.5V/3.3V/5V 28-Pin PDIP

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Speaker Output Resistance (Ohm)	8
Maximum Sampling Frequency (kHz)	12
Maximum Record Duration (s)	60
Message Retention (Year)	100
Maximum Oscillator Resistance (kOhm)	160
Total Harmonic Distortion (%)	1
Interface Type	SPI
Operating Supply Voltage-Min (V)	2.4
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	3.3
Typical Record Current (mA)	20
Typical Playback Current (mA)	20
Typical Speaker Output Power (mW)	670
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Standard Package Method	DIP
Original Package	PDIP
Pin Count	28
Terminal Form	Through Hole
Package Height	3.81
Package Length	36.83
Package Width	13.72
PCB changed	28
