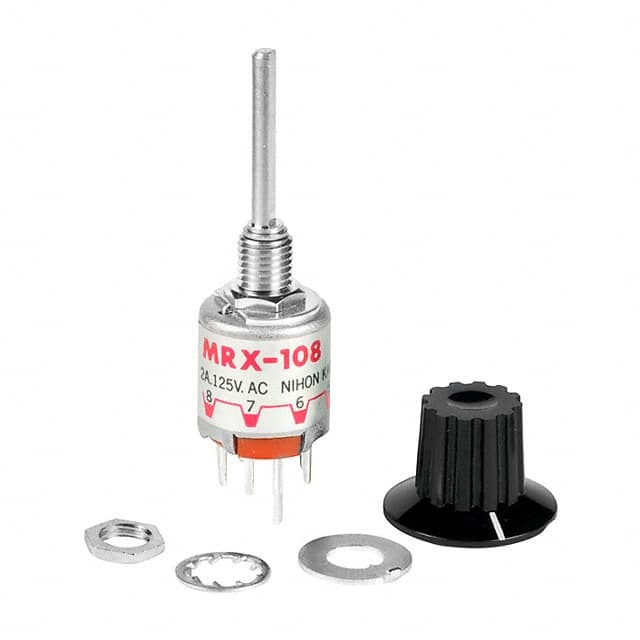

MRX108-A

SKU: 23685

Manufacturer: NKK Switches

Switch Rotary SP8T 8 Knob Shaft PC Turret 2A 125VAC 30VDC Miniature

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.20
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Switch Function	Miniature
Actuator Style	Knob Shaft
Pole Throw Configuration	SP8T
Angle of Throw (°)	45
Number of Positions	8
Poles per Deck	1
Number of Decks	1
Current Rating-Max(A)	2@125VAC
Dielectric Strength	1000VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	10
Electrical Life (Cycles)	7500
Mechanical Life (Cycles)	15000
Maximum Operating Torque (N.m)	0.15
Size Type	Miniature
Actuator Diameter (mm)	19
Actuator Length (mm)	23.5
Contact Style	Non-Shorting
Stop Style	Adjustable
Terminal Form	Panel Mount/Through Hole
Terminal Form	PC Turret
Terminal Length (mm)	5
Number of Terminals	9
Base Body Material	Phenolic Resin
Housing Body Material	Brass
Body Orientation	Straight
Operating Temperature-Min	-10
Operating Temperature-Max	70
Thread Length (mm)	5.6
Body Length (mm)	14
Body Depth (mm)	14
Body Height (mm)	17.3
Length (mm)	14
Depth (mm)	14
