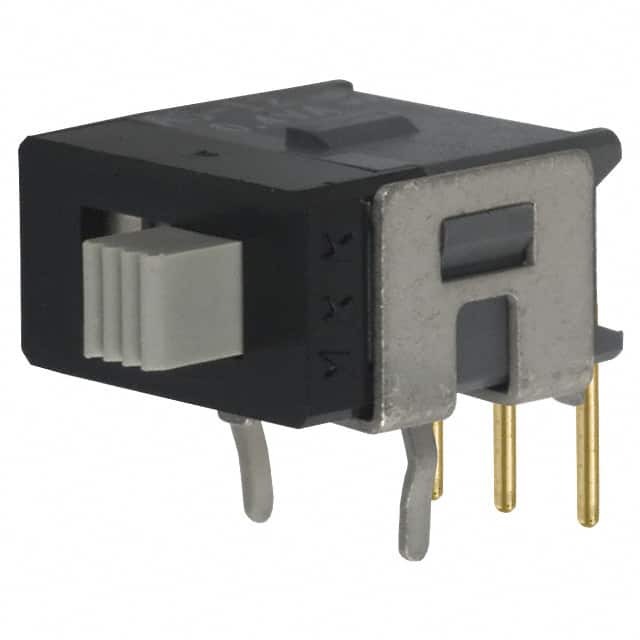

AS12AH

SKU: 122043

Manufacturer: NKK Switches

Switch Slide ON None ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole

1380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.50
Automotive	No
PPAP	No
Actuator Style	Side Slide
Pole Throw Configuration	SPDT
Switch Configuration	ON None ON
Current Rating-Max(A)	0.1@28VAC 28VDC
Maximum Power Rating (VA)	0.4@28VAC 28VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	50000
Mechanical Life (Cycles)	50000
Actuator Color	Gray
Actuator Length (mm)	2.5
Number of Rows	1
Terminal Form	Bracket Mount/Through Hole
Terminal Form	PC Pins
Number of Terminals	3
Terminal Length (mm)	3.1
Terminal Pitch (mm)	2.54
Seal Location	Terminals
Seal Description	Epoxy
Body Orientation	Right Angle
Operating Temperature-Min	-30
Operating Temperature-Max	85
Size Type	Sub-Miniature
Body Length (mm)	9.8
Body Depth (mm)	9.9
Body Height (mm)	6.18
Length (mm)	9.8
Depth (mm)	12.7
