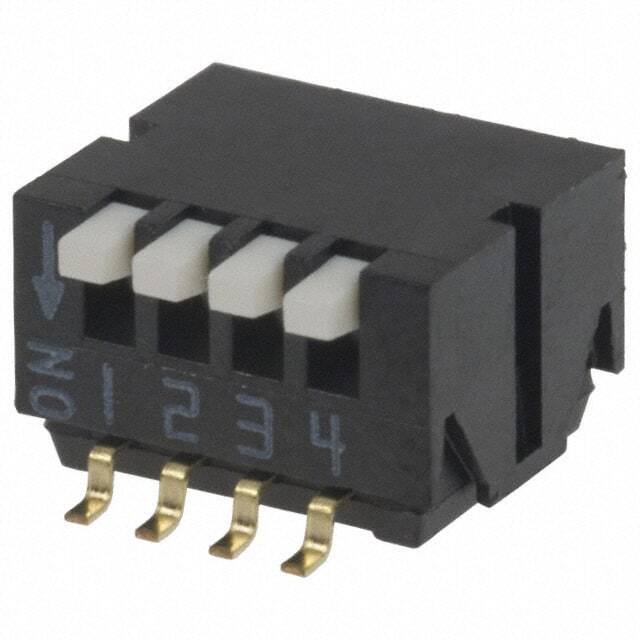

CHP-041TB

SKU: 72618

Manufacturer: NIDEC Copal Electronics

Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC Gull Wing 1.27mm SMD T/R

9900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Piano Switch
Actuator Style	Piano
Pole Throw Configuration	SPST
Switch Configuration	OFF ON
Number of Positions	4
Current Rating-Max(A)	0.1@6VDC
Maximum Nonswitching Current (mA)	100
Maximum DC Voltage Rating (V)	24
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	1000
Actuator Length (mm)	0.75
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Terminal Pitch (mm)	1.27
Number of Terminals	8
Total Pitch (mm)	3.81
Row Space (mm)	7.62
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Weight (g)	0.25
Length (mm)	7.1
Depth (mm)	8
