CFS-0802MB

SKU: 117325

Manufacturer: NIDEC Copal Electronics

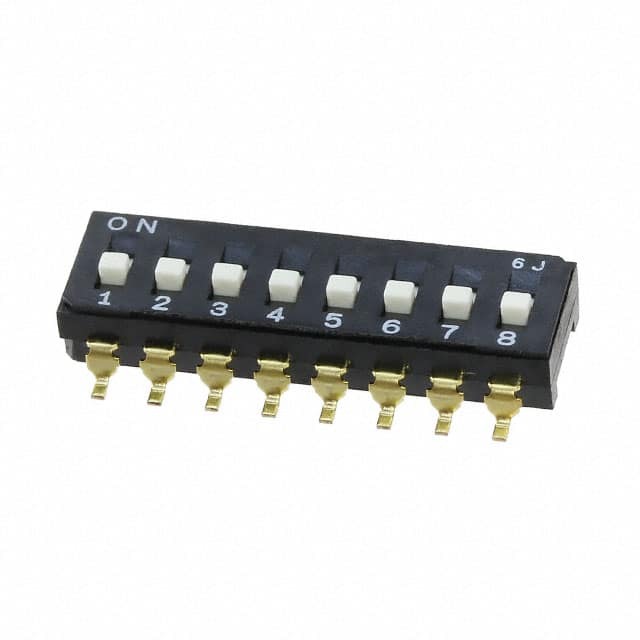

Switch Slide OFF ON 8PST Convex Knob 0.1A 24VDC Gull Wing SMD Magazine

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Actuator Style	Convex Knob
Pole Throw Configuration	8PST
Switch Configuration	OFF ON
Current Rating-Max(A)	0.1@6VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	50
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	16
Housing Body Material	Polyphenylene Sulphide
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Magazine
Product Weight (g)	0.82
Length (mm)	10
Depth (mm)	21.8
