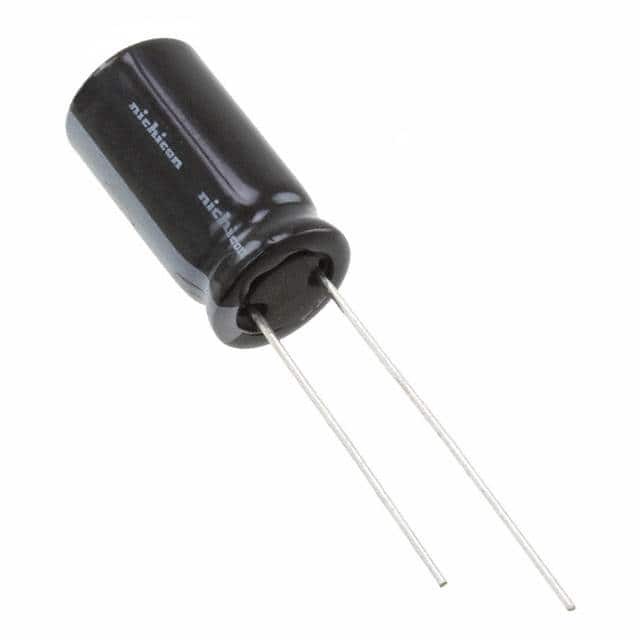

UHE1A102MPD

SKU: 43737

Manufacturer: Nichicon

Cap Aluminum Lytic 1000uF 10V 20% (8 X 20mm) Radial 3.5mm 1050mA 6000h 105°C Bulk

980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.22.00.20
Automotive	No
PPAP	No
Type	Electrolytic
Capacitance Value	1000uF
Tolerance	20%
Voltage	10VDC
Equivalent Series Resistance Type	Low
Maximum Impedance (Ohm)	0.069@20°C@100kHz
IR (mA)	1050
IL (uA)	100@2Min
Lifetime (h)	6000
Polarity	Polar
Construction	Aluminum Cylindrical Can
Terminal Form	Through Hole
Terminal Form	Radial
Number of Terminals	2
Terminal Pitch (mm)	3.5
Wire Form	Long Lead
Size (mm)	8 X 20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Bulk
Product Diameter (mm)	8
Height (mm)	20
