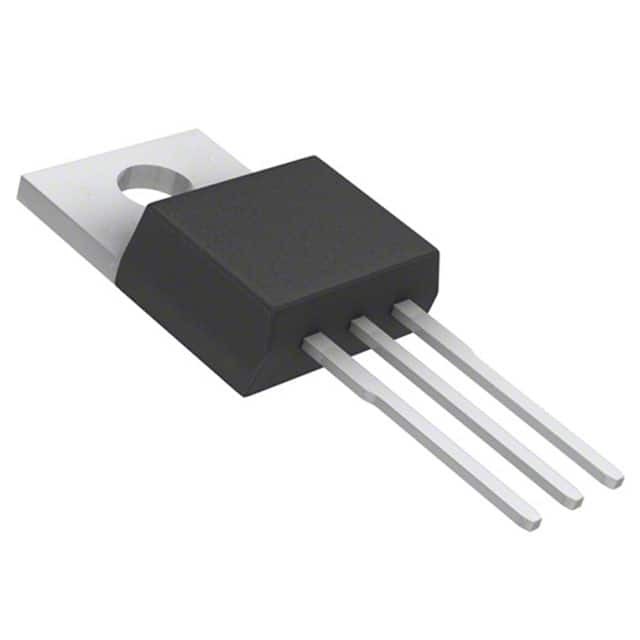

PSMN4R8-100PSEQ

SKU: 101522

Manufacturer: Nexperia

Trans MOSFET N-CH 100V 120A 3-Pin(3+Tab) TO-220AB Rail

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	120
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	5@10V
Typical Gate Charge @ Vgs (nC)	278@10V
Typical Gate Charge @ 10V (nC)	278
Typical Input Capacitance @ Vds (pF)	10665@50V
Maximum Power Dissipation (mW)	405000
Typical Fall Time (ns)	69
Typical Rise Time (ns)	65
Typical Turn-Off Delay Time (ns)	127
Typical Turn-On Delay Time (ns)	41
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Rail
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.3(Max)
Package Width	4.7(Max)
PCB changed	3
