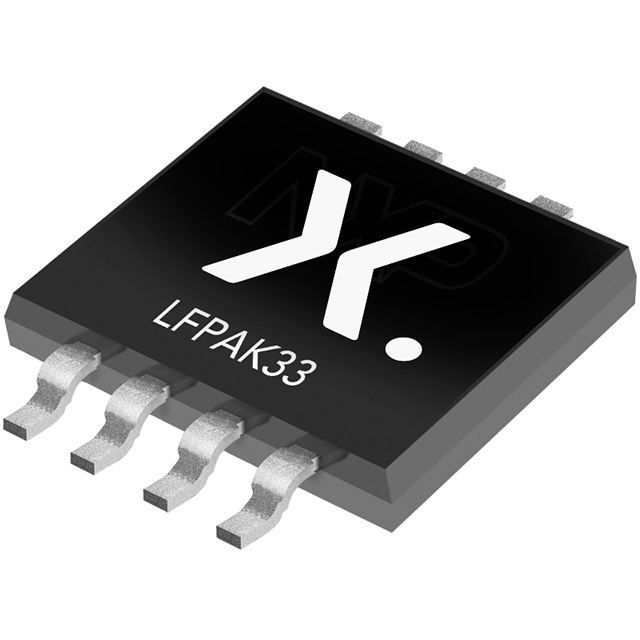

PSMN075-100MSEX

SKU: 21031

Manufacturer: Nexperia

Trans MOSFET N-CH 100V 18A 8-Pin LFPAK EP T/R

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	18
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	71@10V
Typical Gate Charge @ Vgs (nC)	16.4@10V
Typical Gate Charge @ 10V (nC)	16.4
Typical Input Capacitance @ Vds (pF)	773@50V
Maximum Power Dissipation (mW)	65000
Typical Fall Time (ns)	6.2
Typical Rise Time (ns)	5.8
Typical Turn-Off Delay Time (ns)	12.4
Typical Turn-On Delay Time (ns)	5.5
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	LFPAK EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	3.4(Max)
Package Width	2.6
