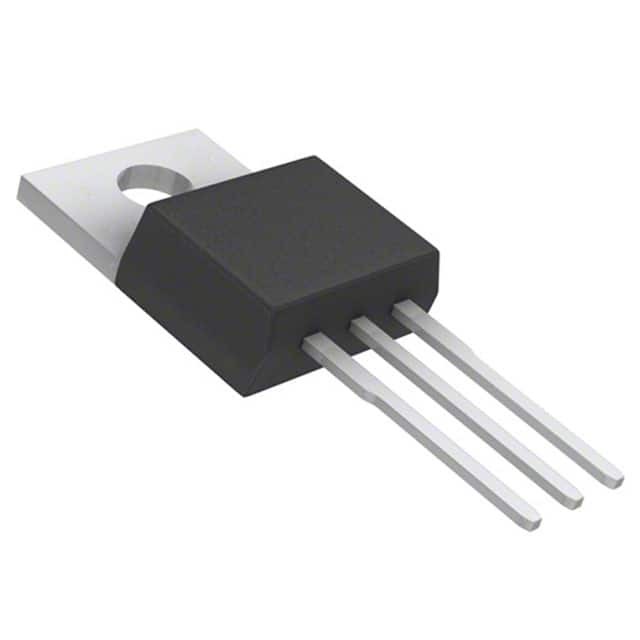

PSMN018-100PSFQ

SKU: 94431

Manufacturer: Nexperia

PSMN018-100PSFQ Nexperia Transistors MOSFETs N-CH 100V 53A 3-Pin(3+Tab) TO-220AB Rail - Arrow.com

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	20
Maximum Gate Threshold Voltage (V)	100
Maximum Continuous Drain Current (A)	53
Maximum Drain Source Resistance (mOhm)	18@10V
Typical Gate Charge @ Vgs (nC)	21.4@10V
Typical Gate Charge @ 10V (nC)	21.4
Typical Input Capacitance @ Vds (pF)	1482@50V
Maximum Power Dissipation (mW)	111000
Typical Fall Time (ns)	12.6
Typical Rise Time (ns)	14.1
Typical Turn-Off Delay Time (ns)	17.3
Typical Turn-On Delay Time (ns)	10.2
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Rail
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	53 (Ta)
Typical Gate Threshold Voltage (V)	10
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.3(Max)
Package Width	4.7(Max)
PCB changed	3
