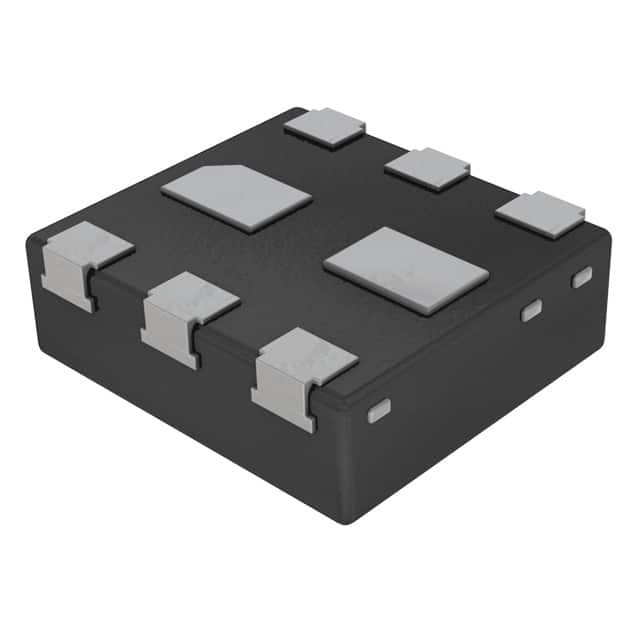

PMDXB550UNEZ

SKU: 70623

Manufacturer: Nexperia

Trans MOSFET N-CH 30V 590A Automotive 6-Pin DFN-B EP T/R

3370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
SVHC	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Small Signal
Configuration	Dual Dual Drain
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	8
Maximum Gate Threshold Voltage (V)	0.95
Maximum Continuous Drain Current (A)	590
Maximum Gate Source Leakage Current (nA)	5000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	670@4.5V
Typical Gate Charge @ Vgs (nC)	0.6@4.5V
Typical Input Capacitance @ Vds (pF)	30.3@15V
Maximum Power Dissipation (mW)	410
Typical Fall Time (ns)	3
Typical Rise Time (ns)	7
Typical Turn-Off Delay Time (ns)	12
Typical Turn-On Delay Time (ns)	4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN-B EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.36(Max)
Package Length	1.1
Package Width	1
