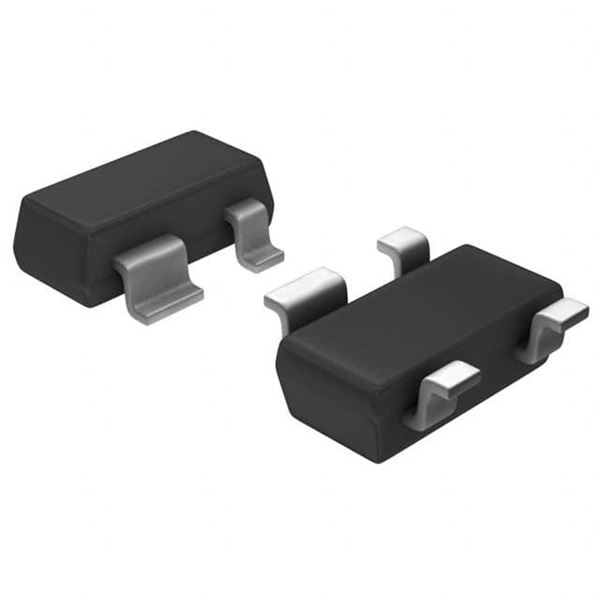

PESD2ETH-AXR Nexperia

PESD2ETH-AXR

SKU: 129868

Manufacturer: Nexperia

ESD Suppressor Diode Diode Array Uni-Dir 5.5V Automotive 4-Pin SOT-143B T/R

Download sample

Request Free Samples

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
Automotive	Yes
PPAP	Yes
Type	Diode Array
Configuration	Dual
Direction Type	Uni-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	5.5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	9
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Capacitance Value (pF)	16(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-143B
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3(Max)
Package Width	1.4(Max)
PCB changed	4
