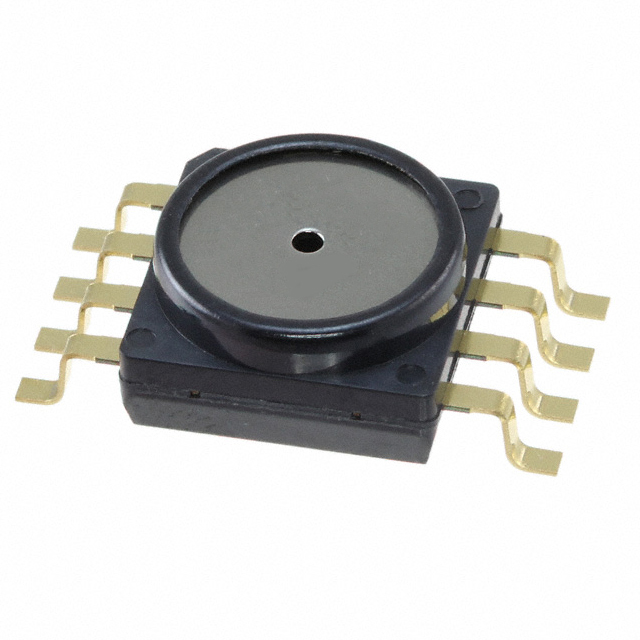

MPXA6115A6T1

SKU: 77211

Manufacturer: Nexperia

Board Mount Pressure Sensor 0.2V to 4.7V 15kPa to 115kPa Absolute Automotive 8-Pin SO T/R

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Device Pressure Type	Absolute
Operating Pressure Range	15kPa to 115kPa
Maximum Overload Pressure	400kPa
Equivalent Overload Pressure Range (psi)	20 to 100
Accuracy (%)	±1.5
Response Time (ms)	1
Typical Full Scale Output	4.7VDC
Output Voltage (V)	0.2 to 4.7
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (mA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	125
Media	Air
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SO
Terminal Form	Surface Mount
Package Height	5.59(Max)
Package Length	10.79(Max)
Package Width	10.79(Max)
PCB changed	8
