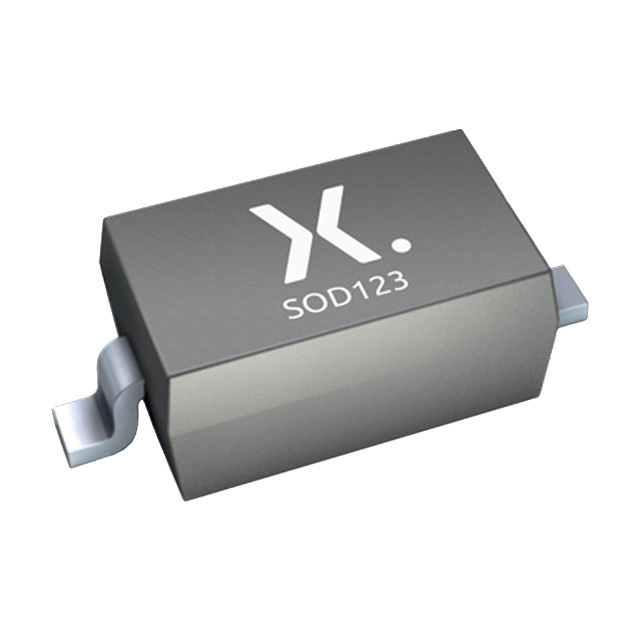

BZT52-C15X

SKU: 74743

Manufacturer: Nexperia

Zener Diode Single 15V 5% 15Ohm 590mW Automotive 2-Pin SOD-123 T/R

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	15
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	590
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	0.05
Average Rectified Forward Current (A)	0.25
Maximum Zener Impedance (Ohm)	15
Maximum Diode Capacitance (pF)	75
Maximum Power Dissipation @ 25C (mW)	590
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	11.1mV/K
Packing Method	Tape and Reel
Original Package	SOD-123
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.2(Max)
Package Length	2.8(Max)
Package Width	1.7(Max)
