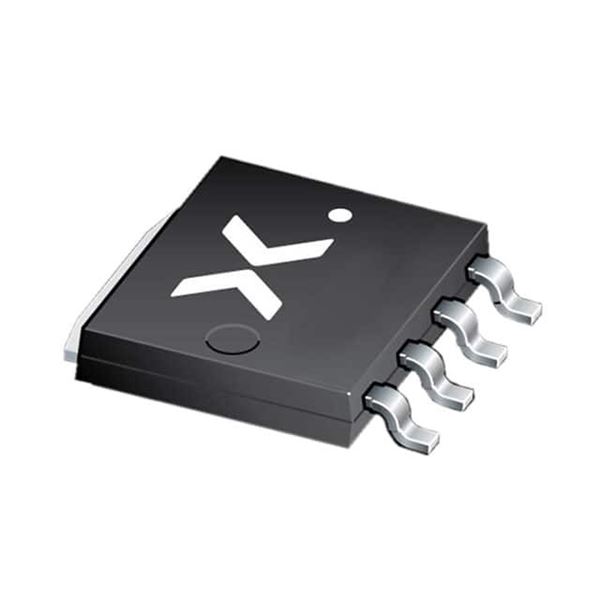

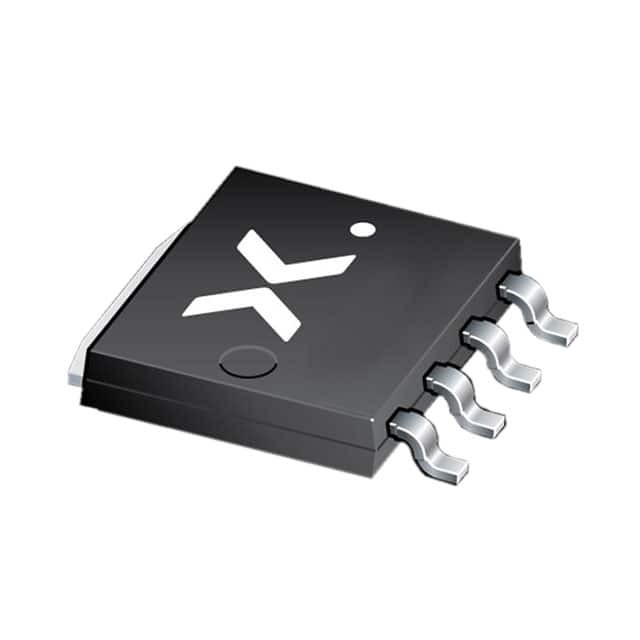

    BUK7J1R4-40HX

    SKU: 18229
    Manufacturer: Nexperia
    Trans MOSFET N-CH 40V 190A Automotive 5-Pin(4+Tab) LFPAK T/R
    2300 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Yes
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Single Triple Source
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 40
    Maximum Gate Source Voltage (V) 20
    Maximum Continuous Drain Current (A) 190
    Maximum Drain Source Resistance (mOhm) 1.4@10V
    Typical Gate Charge @ Vgs (nC) 73@10V
    Typical Gate Charge @ 10V (nC) 73
    Typical Input Capacitance @ Vds (pF) 5436@25V
    Maximum Power Dissipation (mW) 395000
    Typical Fall Time (ns) 21
    Typical Rise Time (ns) 17
    Typical Turn-Off Delay Time (ns) 43
    Typical Turn-On Delay Time (ns) 19
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package LFPAK
    Pin Count 5
    Terminal Form Surface Mount
    Package Height 1.1(Max)
    Package Length 5.3(Max)
    Package Width 4.7(Max)
    PCB changed 4
